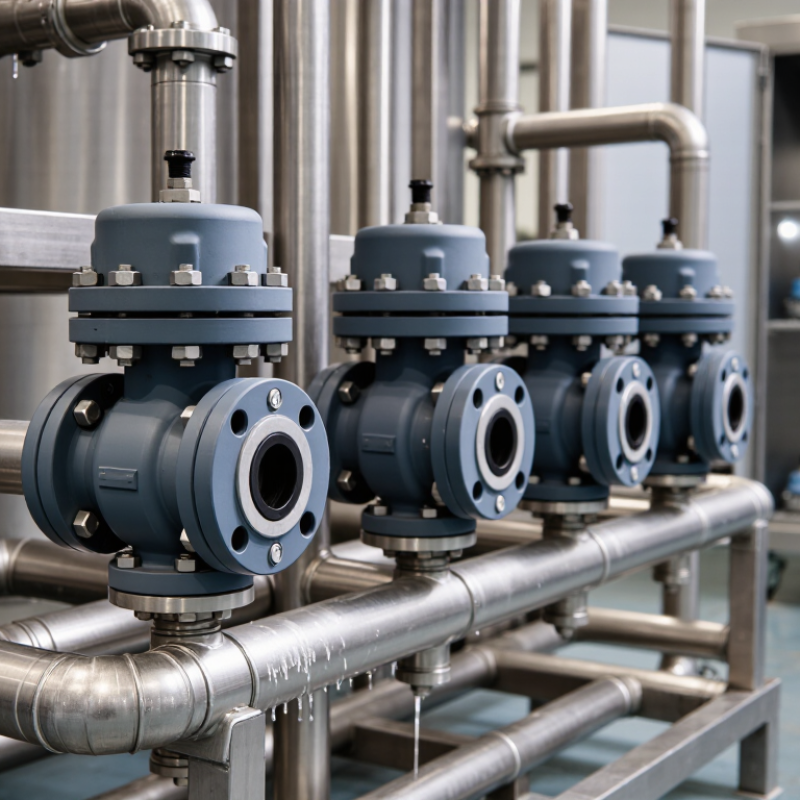

How to Choose Industrial Diaphragm Valves for Global Use?

Choosing industrial diaphragm valves for global service requires more than comparing pressure ratings and purchase prices. Process media, temperature swings, cleanability, actuation, maintenance access, and local utility conditions all matter. A valve that performs well in a European food plant may struggle in a humid mining site or a remote pharmaceutical facility. Small details matter. Think of the elastomer seat, the actuator enclosure, and the spare diaphragm inside a dusty maintenance cabinet.

Market reports support the need for careful specification. Grand View Research identifies continued growth in the global diaphragm valve market, driven by pharmaceutical, biotechnology, chemical, and water-treatment applications. MarketsandMarkets also highlights automation, hygienic processing, and stricter process-control requirements as important demand factors. These reports describe market direction, not a guarantee for every project. That distinction is easy to miss.

Valve specialist Dr. Wolfgang Bothe has stated, “The diaphragm is the heart of the valve.” His point remains practical: material compatibility often matters more than the body material alone. Buyers should verify chemical resistance, pressure class, cycle life, certifications, control signals, and regional service support. ISO, ASME, IEC, and applicable hygienic standards may influence the final design. Local requirements must still be checked by qualified engineers.

A global specification should include documented testing and traceable materials. It should also include failure planning. A spare diaphragm may prevent a costly shutdown. Yet even experienced teams can over-specify. More expensive is not always more reliable. The best choice balances process safety, lifecycle cost, maintainability, and real operating experience.

How to Choose Industrial Diaphragm Valves for Global Use?
Table of Contents [Hide]
1 Define the Operating Conditions and Service Requirements
2 Match Diaphragm Materials to the Process Media
3 Select Valve Construction, Size, and Pressure Ratings
4 Evaluate Actuation, Control, and Installation Requirements
5 Verify Global Standards, Maintenance, and Supply Support

Define the Operating Conditions and Service Requirements

Choosing industrial diaphragm valves for global use starts with operating conditions, not catalog size. Record fluid type, concentration, temperature, pressure, flow range, and cycling frequency. A clean chemical at room temperature may become aggressive when heated. Slurry can also challenge the diaphragm and body lining. Small details matter.

Define whether service is continuous, intermittent, sterile, abrasive, or prone to crystallization. Specify vacuum conditions and pressure surges, especially near pumps and long pipelines. Check minimum and maximum temperatures during startup, shutdown, and cleaning. For global projects, include ambient temperatures, altitude, utilities, and installation space. A valve rated for 10 bar may not suit repeated pressure spikes. Use actual operating data when possible. Design assumptions can be misleading.

Material compatibility needs documented review. Compare the diaphragm, body, seals, fasteners, and actuator with the complete process fluid. Consider permeation, swelling, fatigue, and cleaning chemicals. Confirm shutoff performance, control accuracy, emissions limits, and maintenance access. Selection reviews often reveal missing seasonal conditions or manual handling limits. That gap may change service risk. A conservative choice helps, but excessive margins can reduce control quality and increase cost. Request test evidence, certification documents, and clear temperature-pressure limits. Record every assumption for later review.

How to Choose Industrial Diaphragm Valves for Global Use? - Define the Operating Conditions and Service Requirements

Operating or Service Factor Typical Industrial Range or Requirement Recommended Valve Selection Consideration Key Material or Design Options Verification Point Before Purchase
Fluid Type Water, acids, alkalis, slurries, powders, food fluids, wastewater, or corrosive process chemicals Select the diaphragm and wetted-body materials according to the fluid's chemical compatibility, concentration, and temperature. Rubber, EPDM, PTFE, or other chemically compatible diaphragm materials; lined or corrosion-resistant valve bodies where required Confirm the complete chemical composition, concentration, contaminants, and compatibility at the actual operating temperature.
Operating Pressure Common process applications range from vacuum service to approximately 10 bar; the allowable value depends on size, body design, and temperature. Choose a pressure class with an adequate safety margin above the maximum working pressure, including pressure surges. Weir or straight-through body configurations; reinforced diaphragm construction; suitable flange or threaded end connections Check maximum working pressure, pressure-temperature derating, hydrostatic test pressure, and transient pressure conditions.
Operating Temperature Many general-purpose elastomer diaphragms operate approximately from -20°C to 100°C; PTFE-based designs can support higher temperatures depending on construction. Select the diaphragm compound and body lining for both continuous temperature and short-duration temperature peaks. EPDM for many water-based services; PTFE for strong chemical resistance; elastomer options for abrasion resistance Review minimum and maximum process temperature, steam exposure, thermal cycling, and ambient temperature at the installation site.
Solid Content and Particle Size Slurries may contain suspended solids, abrasive particles, or fibrous material; particle size and concentration vary significantly by process. For abrasive or solids-laden media, consider a straight-through design with reduced flow restrictions and minimal dead zones. Reinforced elastomer diaphragm; abrasion-resistant lining; full-bore or straight-through flow path where suitable Provide solids concentration, particle size distribution, specific gravity, and expected erosion rate.
Flow Rate and Valve Size Flow capacity depends on nominal size, pressure drop, fluid density, viscosity, and valve geometry. Size the valve using required flow rate and allowable pressure drop rather than selecting only by connecting-pipe diameter. Flow coefficient data; reduced-port or full-port configurations; manual, pneumatic, or motorized actuation Confirm minimum, normal, and maximum flow rates and avoid continuous operation near the valve's fully closed or fully open limit.
Flow Control Accuracy On/off isolation generally requires less control precision than throttling or modulating service. Use a suitable control characteristic and actuator for the required repeatability, response time, and cycle frequency. Positioner-equipped pneumatic actuator; electric actuator; manual handwheel with visual position indicator Define whether the valve is for isolation, throttling, emergency shutdown, or automatic flow control.
Vacuum Service Vacuum conditions can occur in drainage, filtration, suction, drying, and process shutdown scenarios. Confirm that the diaphragm, bonnet, and body design are rated for the required vacuum level and duration. Vacuum-supported diaphragm design; reinforced diaphragm; appropriate bonnet venting or sealing arrangement Specify absolute pressure, vacuum depth, temperature, and whether the vacuum is continuous or intermittent.
Chemical Corrosion Acidic and alkaline services can attack metals, elastomers, and lining materials at different rates. Base material selection on concentration-temperature compatibility, not on chemical name alone. Non-metallic lining; PTFE diaphragm; corrosion-resistant fasteners; isolated bonnet components where necessary Obtain compatibility confirmation for the exact chemical, concentration, temperature, pressure, and exposure time.
Cleanability and Hygiene Food, beverage, pharmaceutical, and biotechnology systems may require frequent cleaning or sterilization. Select a design with smooth wetted surfaces, minimal dead volume, drainability, and a diaphragm suitable for the cleaning process. Sanitary connections; cleanable body geometry; elastomers compatible with cleaning agents and process temperatures Confirm cleaning-in-place requirements, sterilization temperature, surface-finish specification, and applicable local regulations.
Gas or Air Service Dry or wet gases may require tight shutoff, low leakage, and resistance to permeation or embrittlement. Verify that the valve design is approved for gas service and that the diaphragm material is suitable for the gas composition. Gas-compatible diaphragm; leak-tested construction; fail-safe pneumatic actuator where required Check gas pressure, temperature, leakage class, oxygen or combustible-gas requirements, and installation orientation.
Actuation and Fail Position Manual operation is suitable for infrequent adjustment; automated systems may require pneumatic or electric actuation. Define the required fail-open, fail-closed, or fail-in-place response during loss of air, power, or control signal. Spring-return pneumatic actuator; double-acting pneumatic actuator; electric actuator with manual override Confirm available instrument-air pressure, electrical supply, enclosure rating, response time, and emergency position.
Cycle Frequency and Service Life Cycle rates range from occasional isolation to frequent automatic operation in dosing and process-control systems. Use a diaphragm and actuator rated for the expected number of cycles and switching frequency. Reinforced diaphragm; cycle counter; position feedback; replaceable diaphragm and accessible maintenance design Estimate daily cycles, annual operating hours, pressure differential during closing, and maintenance intervals.
Leakage and Shutoff Diaphragm valves provide isolation by separating the process fluid from the stem and bonnet mechanism. Choose the required shutoff performance and specify whether external leakage monitoring is necessary. Full diaphragm isolation; resilient seating area; bonnet drain or leak-detection provision where applicable Define allowable internal leakage, external leakage criteria, test medium, and acceptance standard.
Installation Environment Outdoor, coastal, humid, dusty, high-altitude, and cold-weather installations impose different requirements. Match external materials, protective coating, enclosure rating, and low-temperature capability to the site environment. Corrosion-resistant external hardware; weatherproof actuator enclosure; insulated or heated accessories for cold climates Confirm ambient temperature, humidity, salt exposure, dust classification, altitude, UV exposure, and local electrical requirements.
Connection and Global Standards Pipe systems may use different flange dimensions, pressure ratings, threaded standards, or sanitary connections. Specify the exact connection standard and pressure class required at the installation location. Flanged, threaded, clamp, butt-weld, or socket-weld ends; metric or imperial dimensions as applicable Verify pipe outside diameter, flange drilling, facing type, gasket requirements, pressure class, and applicable regional standards.
Maintenance and Spare Parts Diaphragms are wear components and may require periodic replacement depending on temperature, chemistry, abrasion, and cycling. Prefer designs that allow diaphragm inspection and replacement without removing the valve body from the pipeline. Replaceable diaphragm; standardized fasteners; position indicator; documented maintenance procedure Confirm spare-part availability, interchangeability, recommended replacement interval, and local technical support capability.
Safety and Compliance Industrial installations may be subject to pressure-equipment, electrical, machinery, hygiene, or hazardous-area requirements. Specify the regulatory and site-certification requirements before finalizing the valve and actuator configuration. Appropriate pressure documentation; hazardous-area-rated actuator or solenoid; material traceability where required Identify applicable national and international codes, inspection documents, certification needs, and project quality requirements.

Match Diaphragm Materials to the Process Media

Selecting an industrial diaphragm valve starts with the process media, not the pipe size. Chemical concentration, temperature, pressure, and exposure time all affect diaphragm life. A liquid that seems mild at room temperature may become aggressive when heated. Check the complete operating range.

PTFE suits many corrosive chemicals and offers strong chemical resistance. However, it may need careful support under pressure and repeated cycling. EPDM often performs well with water, steam, and many alkaline solutions. It is usually a poor choice for petroleum oils. NBR can handle many oils and fuels, but its resistance to strong oxidizers is limited. FKM tolerates numerous oils and solvents, yet compatibility depends on temperature and concentration. For abrasive slurries, rubber diaphragms may provide better flexibility and wear behavior. That choice is not automatic.

Do not rely on a generic chemical chart alone. Request documented compatibility data for the exact medium and temperature. Review permeation, swelling, cracking, and compression-set risks. A practical trial can reveal problems that laboratory tables miss. Inspect the diaphragm after a defined number of cycles. Look for softening, blisters, edge damage, or permanent deformation. Global projects also require attention to local pressure ratings, hygienic requirements, and material traceability. Standards differ by market. The paperwork can feel excessive, but missing records can delay commissioning. Recheck assumptions when the media contains additives, suspended solids, or changing concentrations.

Select Valve Construction, Size, and Pressure Ratings

How to Choose Industrial Diaphragm Valves for Global Use?

Select Valve Construction, Size, and Pressure Ratings

Selecting an industrial diaphragm valve starts with the fluid, not the pipe label. Acidic chemicals, abrasive slurries, and sterile liquids demand different diaphragm and body materials. PTFE may resist aggressive chemicals, while elastomers can handle certain temperatures more flexibly. Verify compatibility using actual concentration and operating temperature data. Guessing can be expensive.

Construction details matter in daily operation. A lined body can protect metal surfaces from corrosion, but lining damage may remain hidden during routine checks. We once underestimated frequent thermal cycling on a process line. The valve worked initially, then required earlier maintenance. That experience changed our selection process. Check diaphragm reinforcement, actuator access, sealing design, and drainability. Keep inspection practical.

Size the valve for required flow, not simply the existing pipe diameter. Oversizing may reduce control accuracy and create unnecessary cost. Undersizing can increase velocity, noise, and pressure loss. Review flow rate, viscosity, density, and allowable pressure drop together. Then confirm the pressure rating at the highest operating temperature. Ratings can decrease as temperature rises. Leave a realistic safety margin, but avoid excessive conservatism. It can produce a heavy, inefficient installation. For global projects, compare recognized standards, connection dimensions, testing records, and material certificates. Local requirements may differ. Ask for traceable documentation before shipment.

Evaluate Actuation, Control, and Installation Requirements

How to Choose Industrial Diaphragm Valves for Global Use?

Evaluate Actuation, Control, and Installation Requirements

Choosing an industrial diaphragm valve starts with the process, not the catalog. I have seen installations fail because engineers sized valves around pipe diameter alone. Check fluid temperature, pressure, concentration, and solids before selecting diaphragm materials. A valve handling abrasive slurry may need different lining than one serving clean water. Do not overlook cycling frequency. Frequent strokes can expose weak actuator sizing and poor control logic. For global projects, confirm metric connections, available utilities, and local maintenance skills early.

Actuation should match the failure position required by the process. Pneumatic actuators suit fast, repeatable movement when clean instrument air is available. Electric actuators can simplify remote control, but power quality and backup response need careful review. Specify duty cycle, travel time, feedback type, and manual override before ordering. Control signals must match the plant system, such as analog input or digital communication. Simple is safer. Still, a basic position switch may not provide enough information for critical flow control.

Installation details often decide long-term reliability. Leave room for diaphragm replacement, actuator removal, and safe inspection. Support heavy assemblies independently when piping loads could distort the valve body. Use compatible gaskets and tighten fasteners in a controlled sequence. I recommend a dry functional test before introducing process fluid. It catches reversed signals surprisingly often. Documentation should include torque values, control diagrams, spare diaphragm data, and commissioning records. One uncomfortable lesson remains: specifications can look complete while hiding a maintenance problem. Ask the installer to challenge the design.

Verify Global Standards, Maintenance, and Supply Support

How to Choose Industrial Diaphragm Valves for Global Use?

Verify Global Standards, Maintenance, and Supply Support

A diaphragm valve for international service must match the process, not just the pipe size. Check pressure ratings, temperature limits, lining materials, and diaphragm compatibility with the fluid. Confirm applicable standards for design, testing, materials, and connections in the destination market. Documents should include pressure-test records, material certificates, inspection results, and clear revision control. Without traceability, a familiar-looking valve can create uncertainty during audits or replacement.

Maintenance planning deserves equal attention. Ask how often the diaphragm, actuator, and fasteners require inspection under your operating cycle. A valve exposed to abrasive slurry needs different care from one handling clean water. Spare diaphragms should have defined storage conditions, shelf lives, and material identification. Keep installation drawings nearby. Small errors matter. Incorrect tightening can damage the diaphragm or cause uneven sealing. I have seen maintenance teams follow a generic checklist that ignored local temperature changes, which later distorted service intervals.

Supply support is often tested after the purchase. Confirm regional stock, realistic lead times, packaging protection, and technical assistance across time zones. Request multilingual manuals only when translations are technically controlled. Replacement parts should remain traceable to the original valve configuration. A supplier may promise fast delivery, but emergency stock is meaningless without compatible parts. Review response procedures, training availability, and escalation contacts before production starts. The plan may still need revision after the first maintenance cycle.
