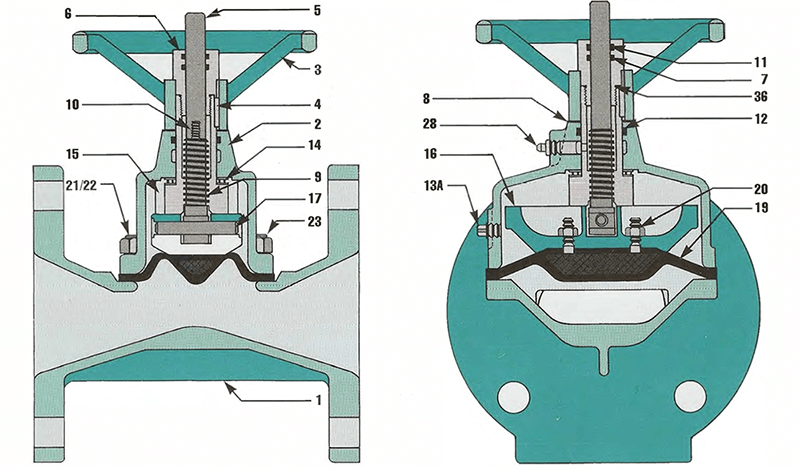

Parts List
| No. | Description |
|---|---|
| 1 | Body |
| 2 | Bonnet |
| 3 | Handwheel |
| 4 | Handwheel Key |
| 5 | Indicator Rod |
| 6 | Bushing Cap |
| 7 | Cap Seal |
| 8 | Thrust Washer |
| 9 | Shaft |
| 11 | Wiper Ring |
| 12 | Bonnet Seal |
| 13A | Pipe Plug, W/Tell-Tale |
| 14 | Thrush Bearing |
| 15 | Bushing |
| 16 | Compressor |
| 17 | Compressor Pin |
| 19 | Diaphragm |
| 20 | Diaphragm Nuts |
| 21/22 | Bonnet Studs / Bolts |
| 23 | Bonnet Nuts |
| 28 | Grease Fitting |
| 36 | Cap Lower Seal |
